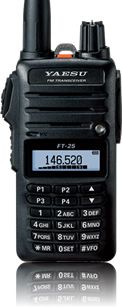

Yaesu 25E
85
Yaesu 25E
- +
Details

Compact Design measuring W 52.5 x H 104.5 x D 31mm

5 Watts of reliable RF power within a compact body

Three selectable power settings from 0.5W LOW ; 1.0W MIDDLE to 5.0W HIGH

One Watt Audio power output for clear audio from 36mm Front facing speaker

Rugged Construction Meets IP54 and MIL-810-C,D and E

QRK (Quick Recall Key) Four programmable Keys for Quick access to favourite funtions.

Over 9 Hours operating time from supplied 1,950mAh (SBR-25Li)Li-Ion Battery Pack (6:6:48)

Optional 2,500mAh High Capacity Battery available (SBR-26Li) provides over 11.5Hrs Extended Operating Time (6:6:48)

3.5Hr Rapid Charge (SBH-22) supplied with radio

Large White LED Flashlight with Alarm and Quick Home Channels access for Emergency signalling

Versatile Scanning modes ( Programmed VFO Scan, Memory Scan, Priority Scan)

VOX operation with optional VOX earpiece microphone (SSM-512B)

PC Programmable with Optional PC Programming Cable SCU-35)

Transceiver to Transceiver cloning with Cloning Cable (SCU-36)

FM Broadcast Receiver

ARTS ( Automatic Range Transponder System) for alerting users when out of range

DTMF Signalling

CTCSS/ DSC Signalling

BCLO (Busy Channel Lockout ) prevent transmission when channel is busy

Battery Save function

Automatic Power Off (APO) feature

TX Time Out Timer

Technical Specs
More Information
Brand Yaesu
Specs

GENERAL

Frequency Ranges RX

136 - 174 MHz

FM BROADCAST

65 - 108 MHz

TX

144 - 146MHz [EU Version]

Channel Steps5/10/12.5/15/20/25/50/100kHz

Frequency Stability±5ppm @ -10ºC to +60ºC

Repeater Shift±600kHz (144MHz), ±1.6/7.6MHz (430MHz)

Emission TypeF2D, F3E

Antenna Impedance50Ω

Supply Voltage

Nominal 7.4V DC, Negative Ground

Current Consumption205mA (Receive) 200mW Output

(approx. @ 7.2V)100mA (Standby, Saver Off)

47mA (430MHz, Standby, Saver Off)

18mA (Standby, Saver On)

4mA (Auto Power Off)

1.5A (5W TX, 144MHz)

Operating Temperature-20ºC to +60ºC

Case Size (W x H x D, mm)52.5 x 104.5 x 31.0 mm

Weight (approx., g)260g with SBR-25Li and antenna

TRANSMITTER

RF Power Output (approx.)5.0W (High), 2.5W (Middle), 0.5W (Low).

Modulation Type Variable Reactance (F2D, F3E)

Maximum Deviation±5.0kHz (F2D, F3E)

Spurious Emission at least 60dB down (Hi & Middle power)

at least 40dB down (Low power)

Microphone Impedance2kΩ

RECEIVER

Circuit Type Direct Conversion

Sensitivity0.2µV for 12dB SINAD (140 - 150MHz, NFM)

Selectivity12kHz/35kHz (-6dB/-60dB)

AF Output MAX POWER 1W @ 16Ω, 0.8W @16Ω for 10% THD

Instrument Type Radios
Availability
In stock
